NOTE: All sizes of hoses from Danfoss are available as per demand
Product specifications
|
Characteristic
|
Value
|
|---|---|
| Abrasion resistance |
Standard
|
| Application |
General industrial use
|
| Bend radius min (inch) |
3.940
|
| Bend radius min (mm) |
100.000
|
| Brand |

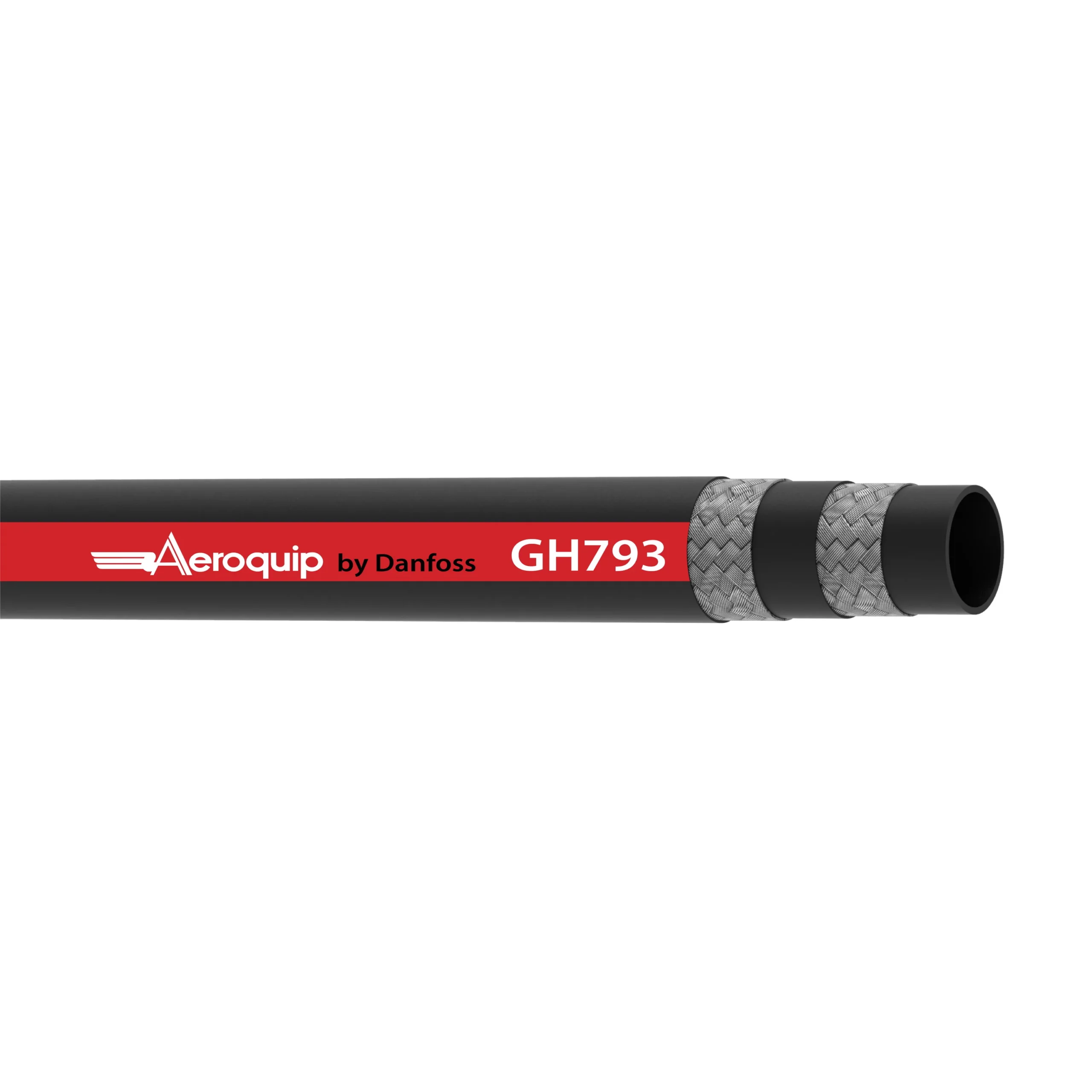

Aeroquip by Danfoss
|
| Burst pressure (bar) |
1792
|
| Burst pressure (psi) |
26000
|
| Catalog Item |
GH793-4
|
| Certifications |
USCG
|
| Color |
Black
|
| Compliances |
EN853 2SN
|
| Conditional temp range |
-40F to 257F intermittently
|
| Conductivity |
Conductive
|
| Construction |
2 Wire Braid
|
| Cover material |
Nitrile (NBR)
|
| Impulse cycle (cycles) |
200000
|
| Inside diameter (inch) |
0.25
|
| Inside diameter (mm) |
6.40
|
| Lay line style |
Ink transfer
|
| Outside diameter (inch) |
0.59
|
| Outside diameter (mm) |
15.10
|
| Package form |
Bulk
|
| Product height in |
0.250
|
| Product height mm |
6.400
|
| Product width in |
0.250
|
| Product width mm |
6.400
|
| Qualified hose fittings |
TTC/Z Series
|
| Reinforcement material |
Brass plated steel wire
|
| Series |
GH793 Series
|
| Size |
-4
|
| Tube material |
Nitrile (NBR)
|
| Vacuum rating (inHg) |
28
|
| Vacuum rating (mmHg) |
711.20
|
| Working pressure max (bar) |
448
|
| Working pressure max (psi) |
6500
|
| Working temperature max (C) |
126
|
| Working temperature max (F) |
260.0
|
| Working temperature min (C) |
-40
|
| Working temperature min (F) |
-40.0
|
